Morgo Oil Pressure Gauge 2 Way Adaptor 3/8″ BSCY

£14.95

29 in stock

Description

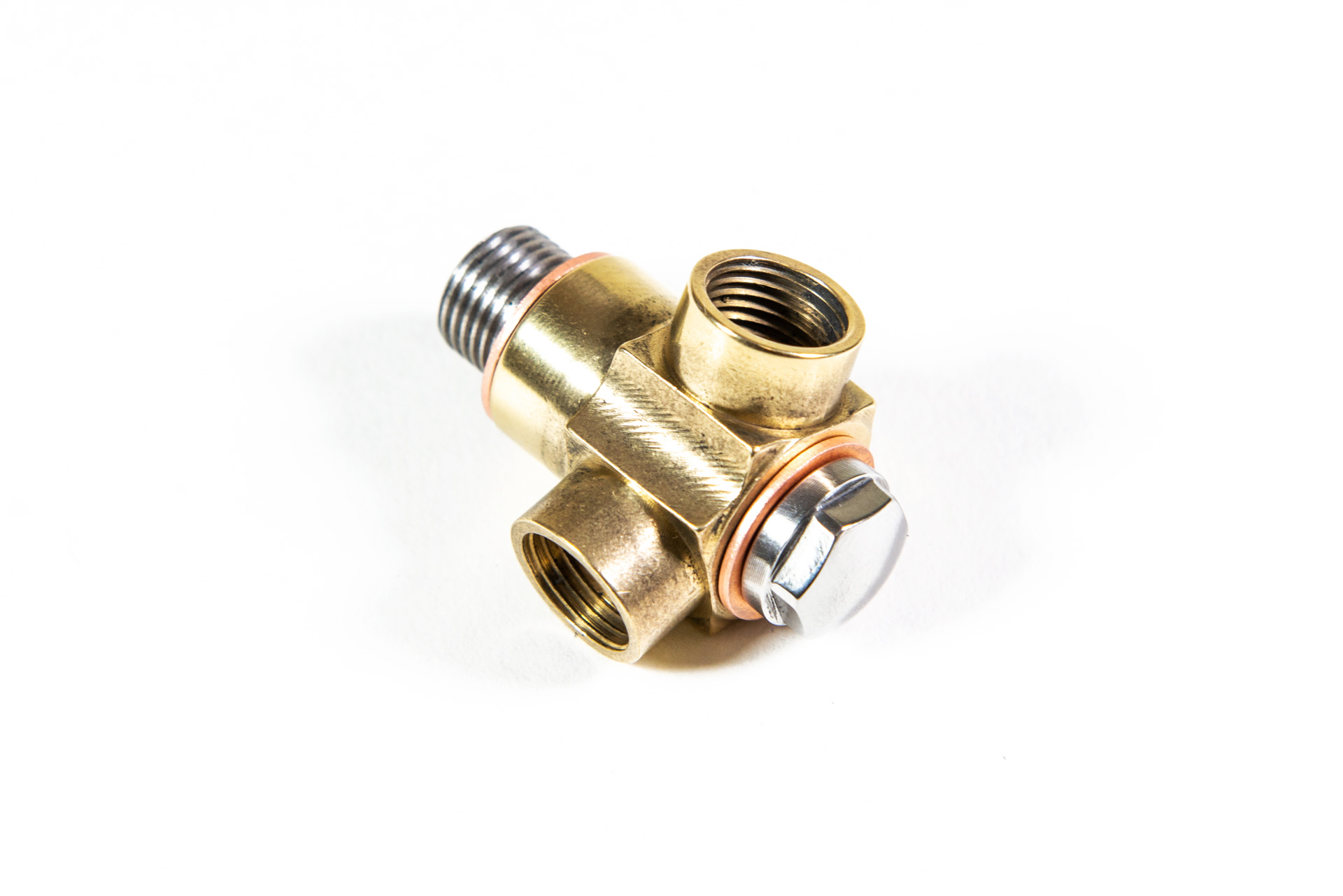

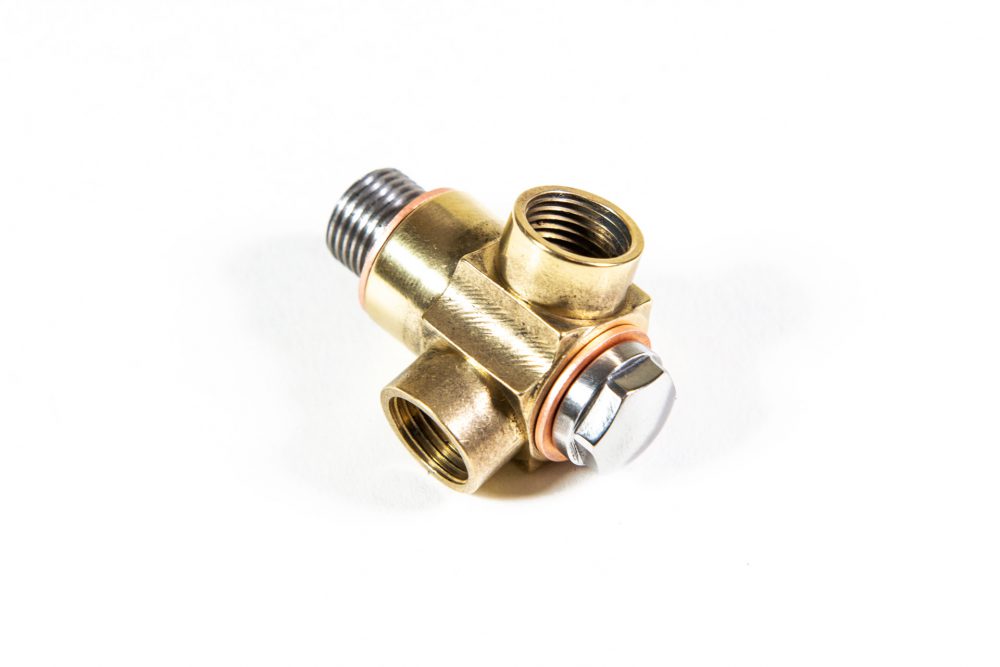

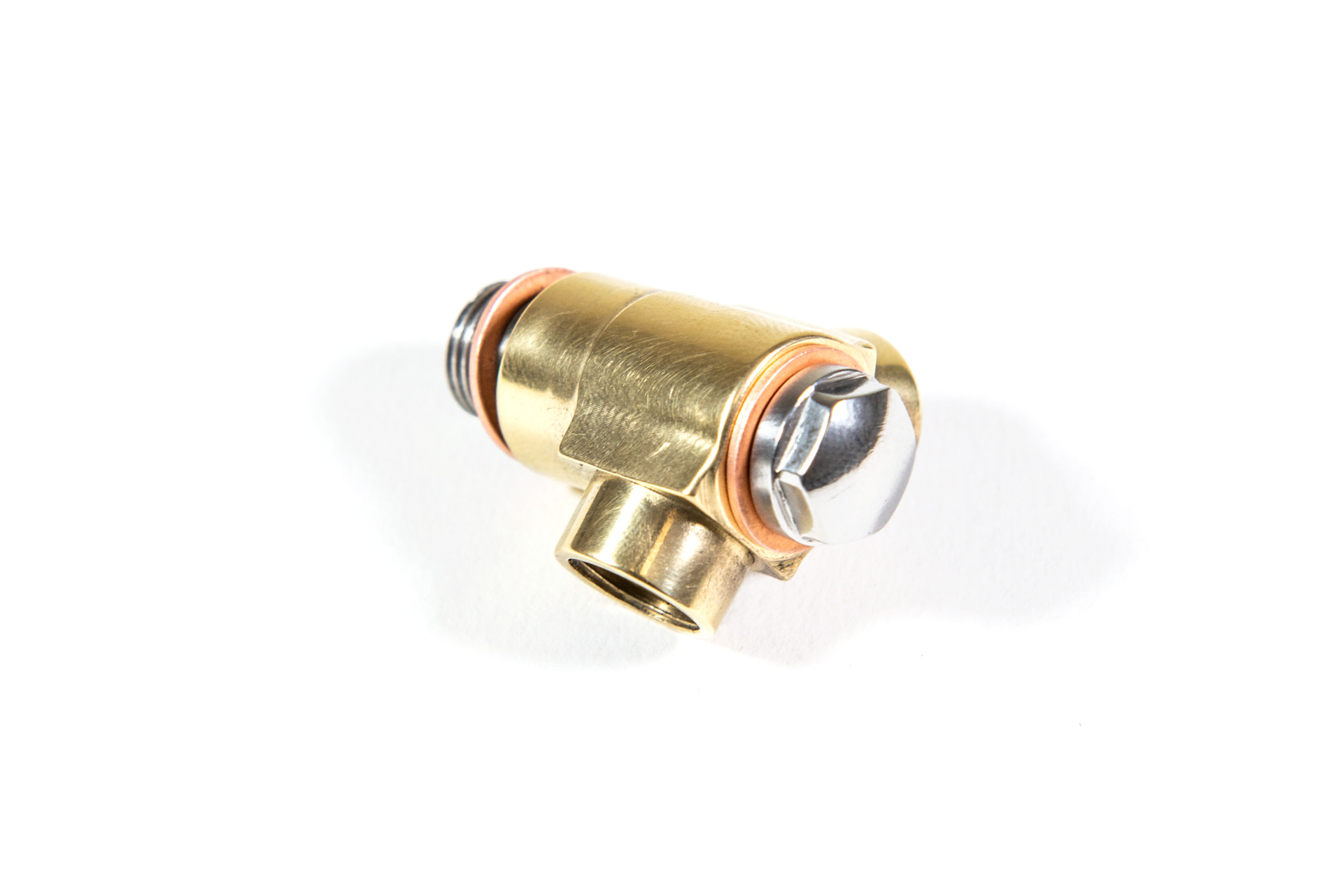

Made from stainless steel and heavy duty brass this 2 way 1/8″ BSP female adaptor allows our gauge kit and a second connection with a 1/8″ BSP or BSPT connector to be fitted to Triumph engines that have the 3/8″ BSCY threaded boss on the timing cover.  Please note:- NOT all Triumph engines have the same thread in this boss so care should be taken choosing from our range of adaptors.



Early engines are 3/8″ BSCY at 26 TPI and a outside diameter of 0.375″ (9.53mm)



Engines with 1/8″ BSP at 28 TPI and a outside diameter of 0.383″ (9.73mm)



Later engines have NPT or APP also known as NPS threads at 27 TPI with a outside diameter of 0.390″ (9.9mm)



Technical Information

Weight 0.1 kg
Fitment

Triumph with 3/8" BSCY threaded timing cover boss and any other with the same thread.

Supplied

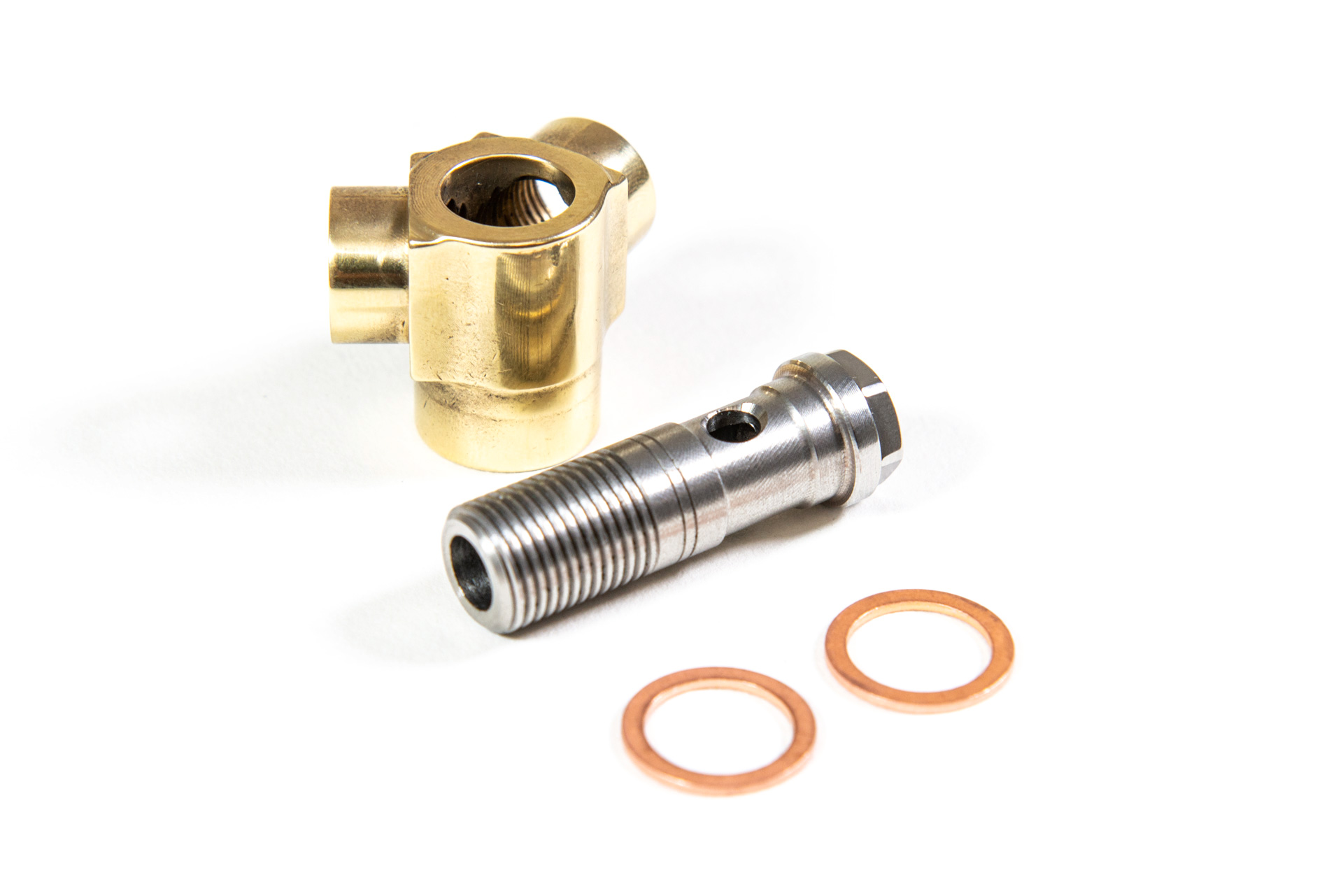

3/8" BSCY banjo bolt, 2 way adaptor 1/8" BSP, 2 off copper washers.
