Multi Point Pressure Adaptor Kit

£39.95

Description

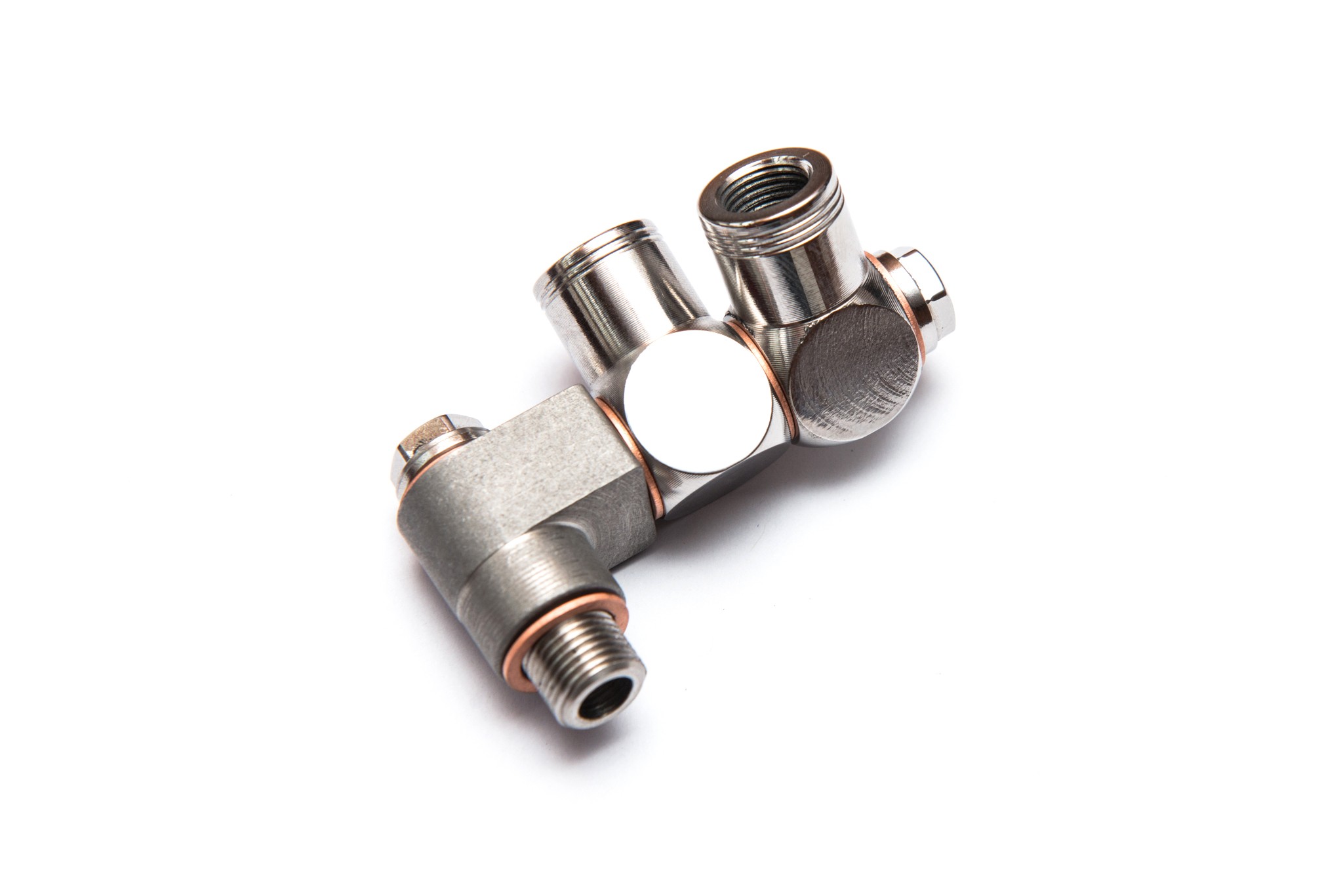

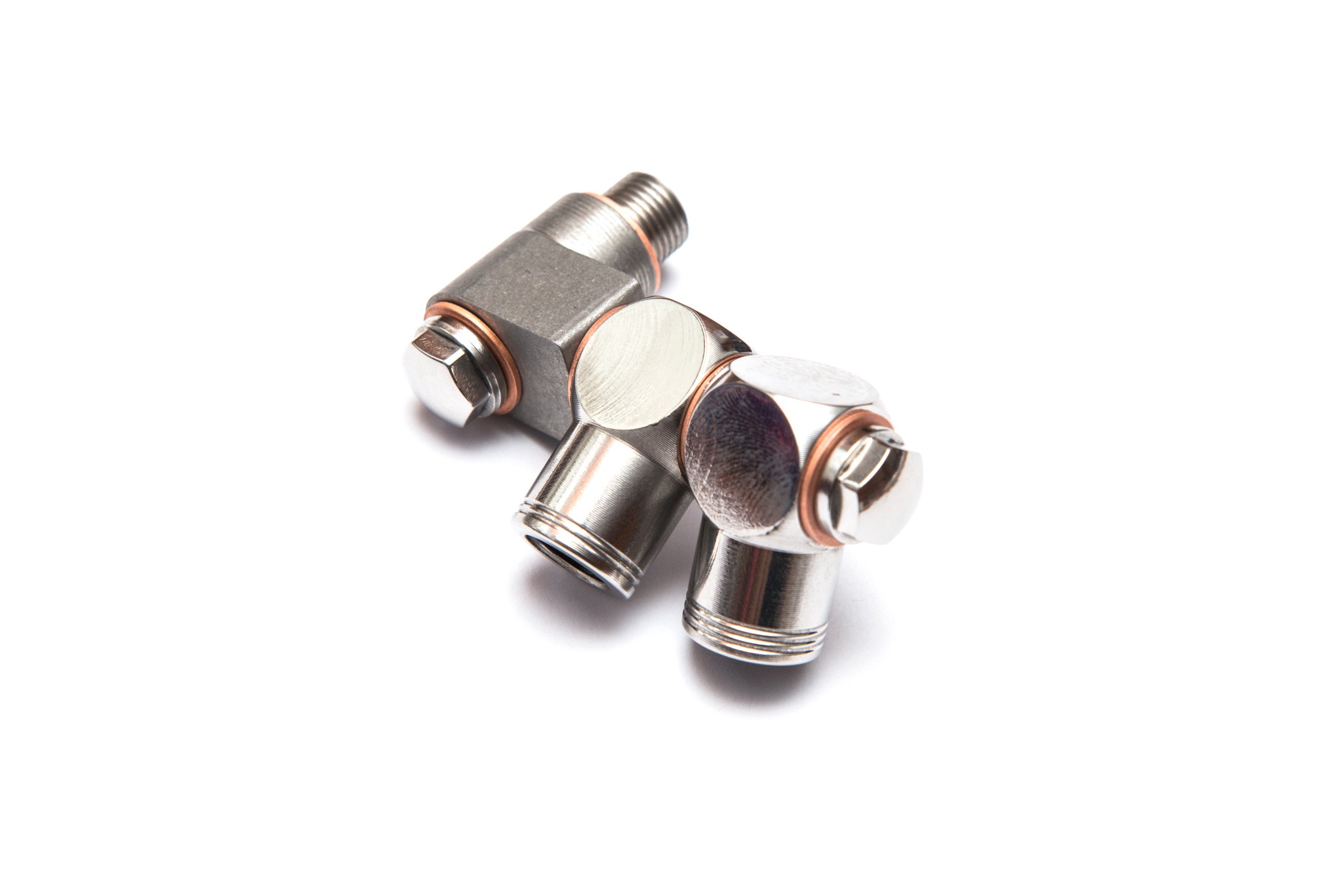

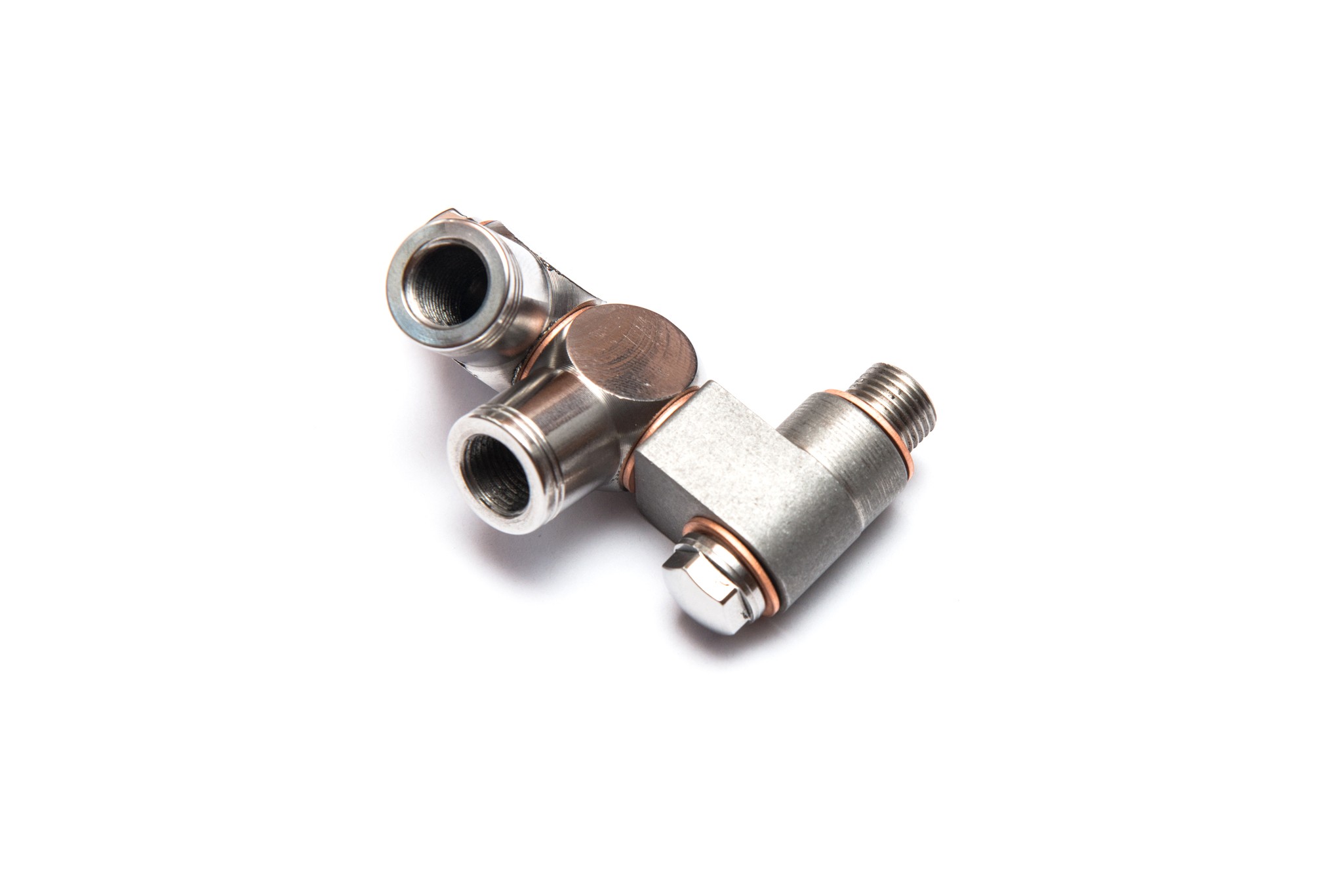

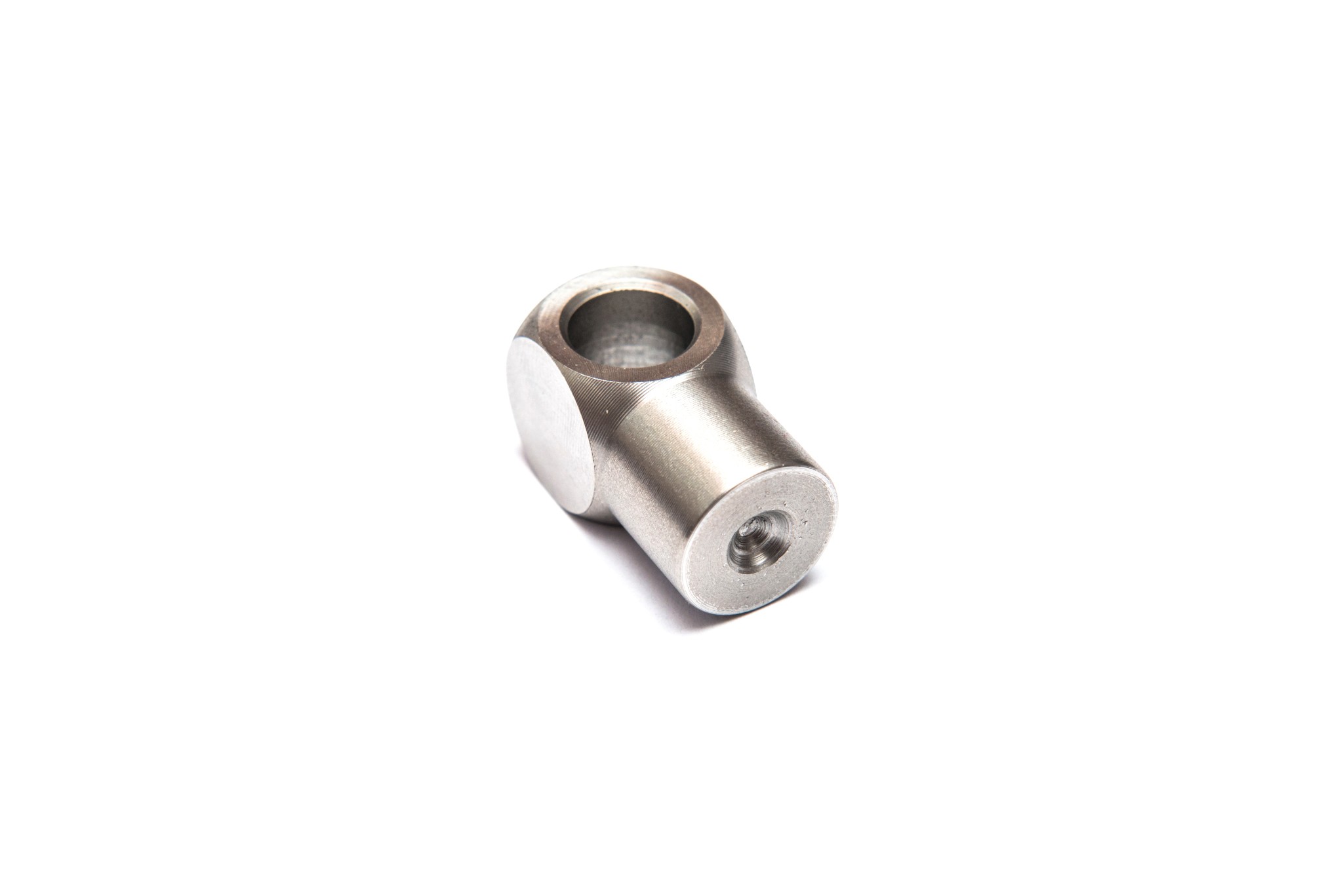

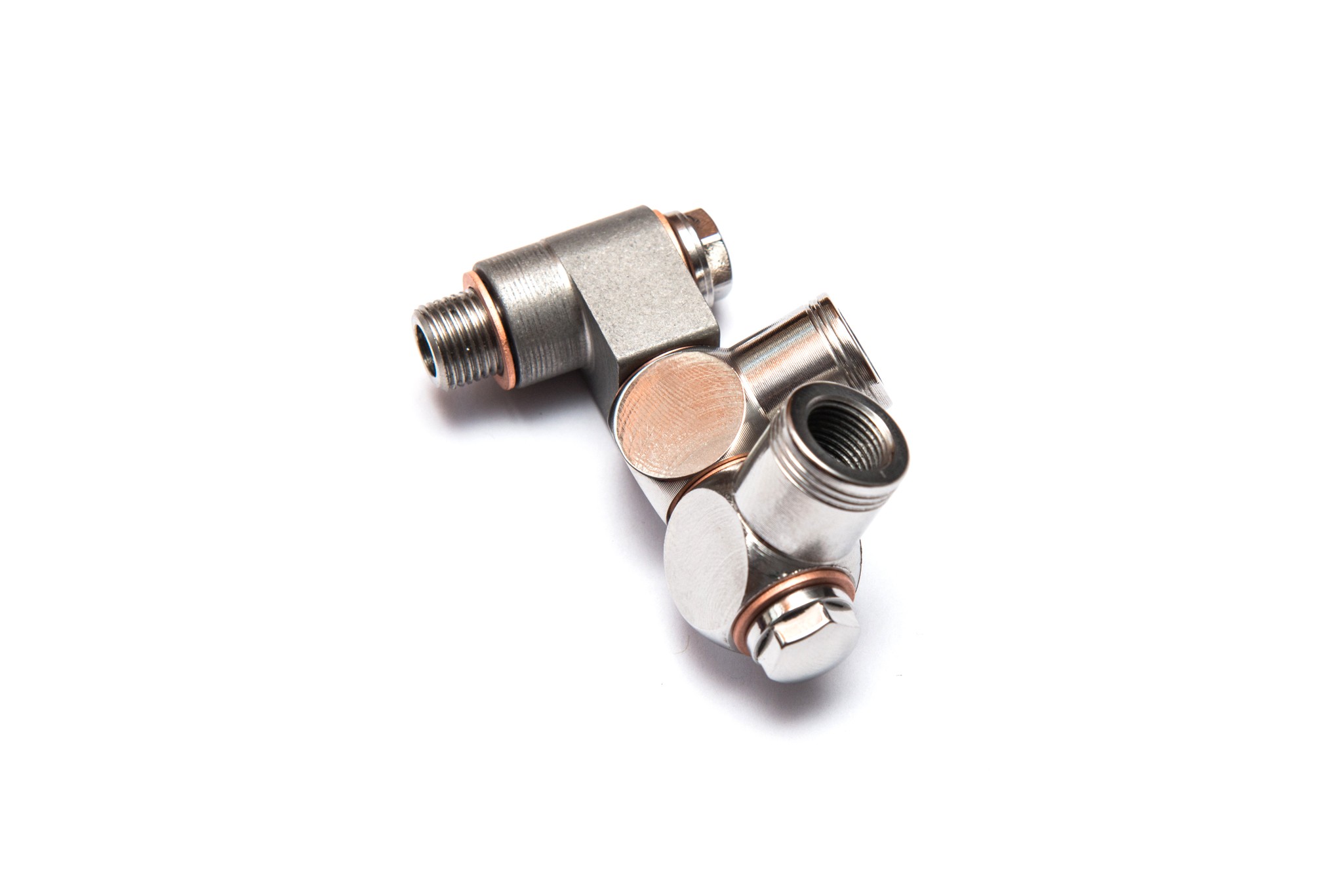

The Morgo multi point pressure switch adaptor is machined from stainless steel the fittings and bolt heads are polished.

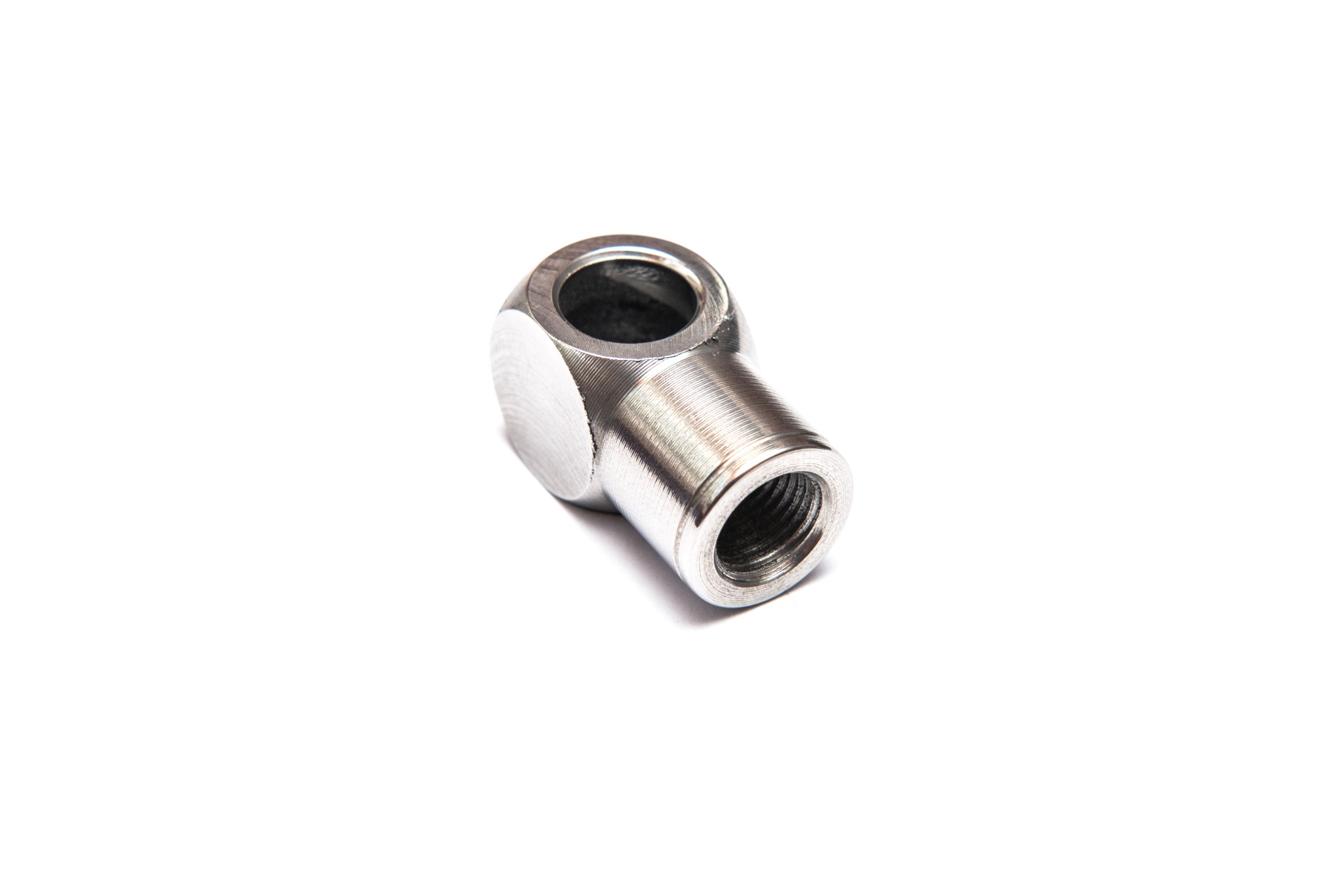

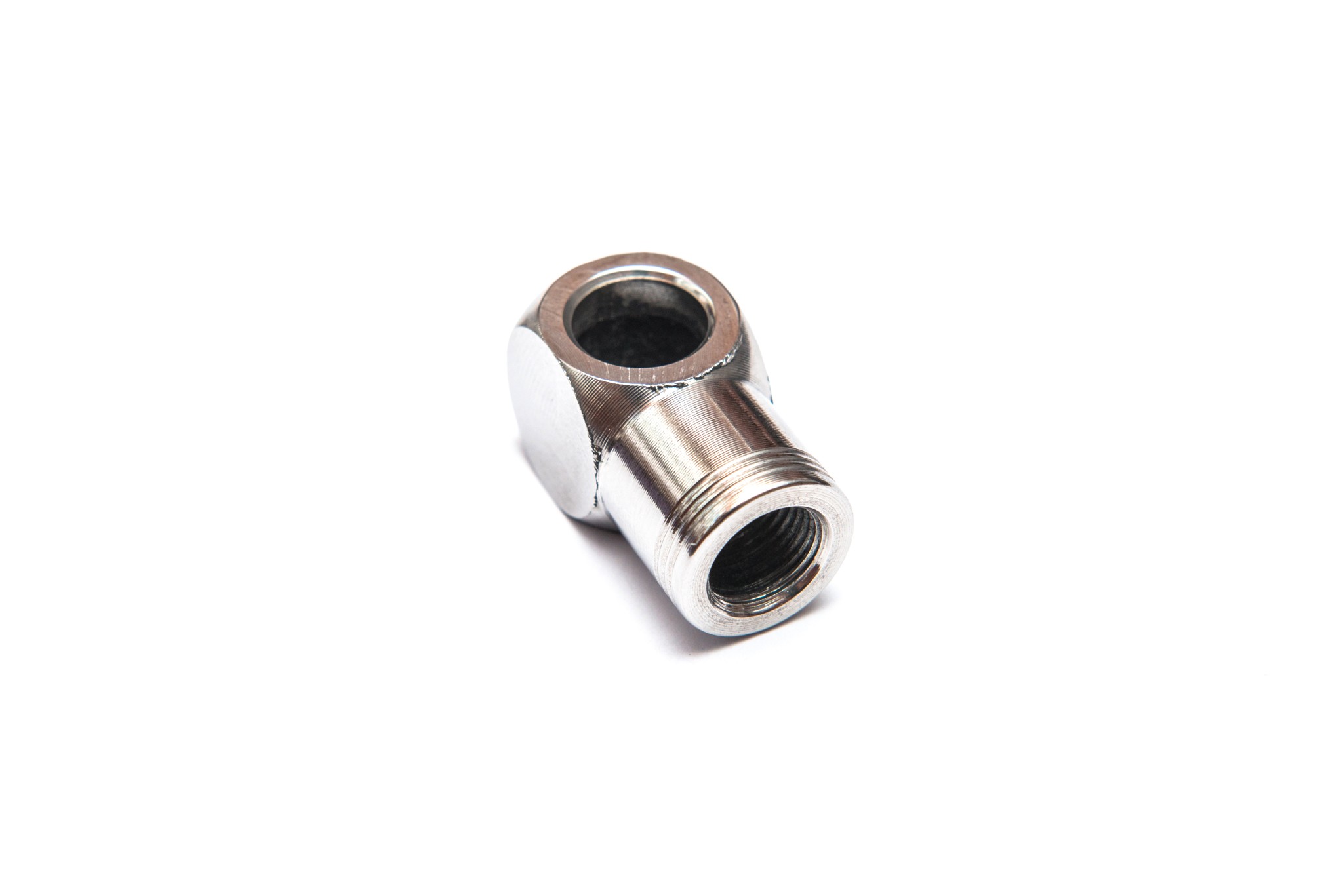

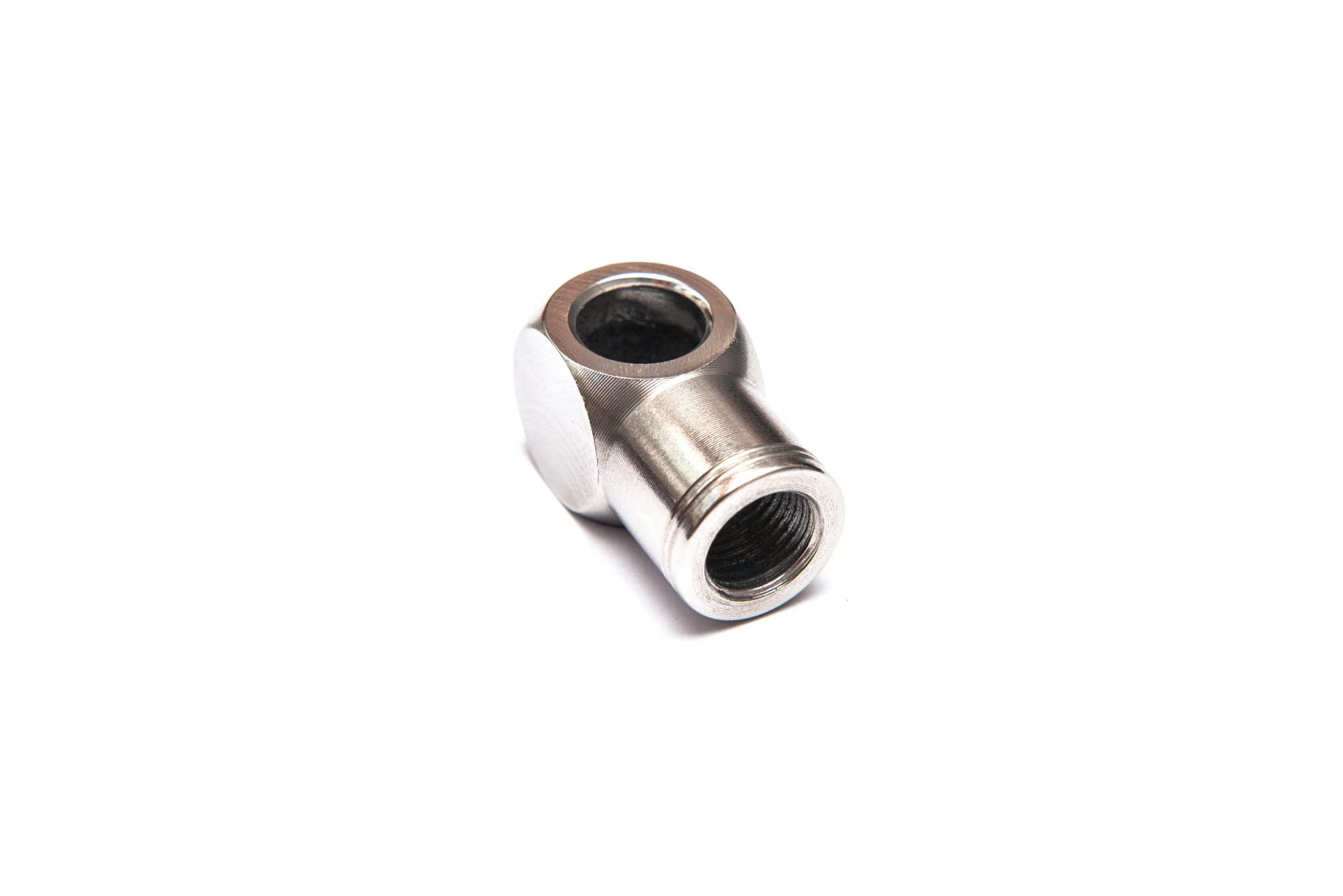

Supplied with copper sealing washers and a choice of thread types or drill your own to suit your needs.  The adaptors are marked with rings grooves for identification.

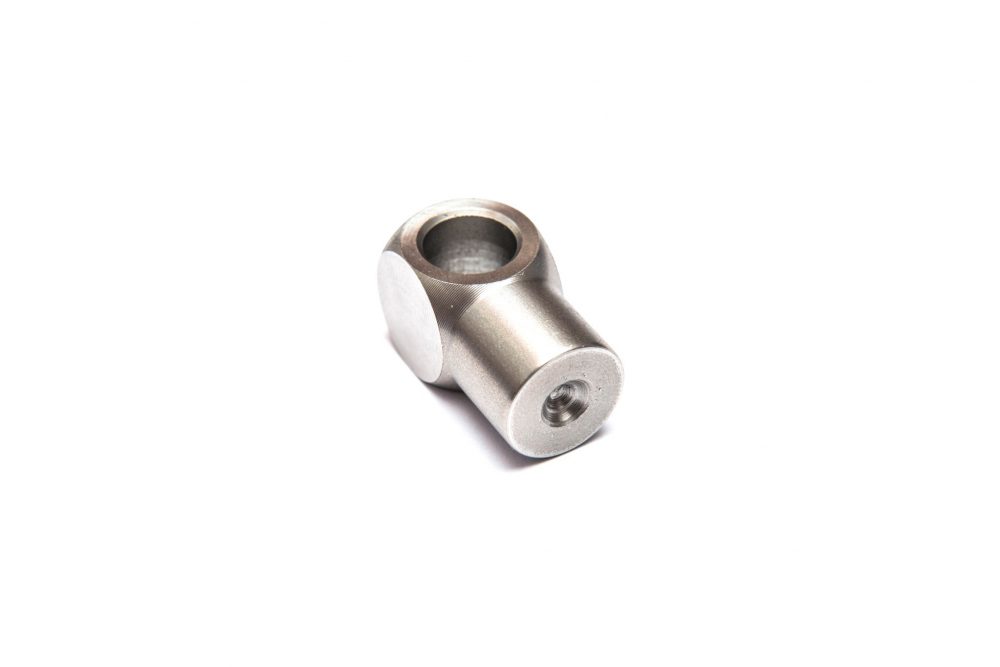

  • No ring groove : Not drilled, you put in what you need. Maximum thread diameter 1/2″ (12.7mm)
  • 1 Ring groove : British Standard Cycle (3/8″ BSCY)
  • 2 Ring grooves : National Pipe Straight (390 NPS)
  • 3 Ring Grooves : British Standard Pipe (1/8″ BSP)

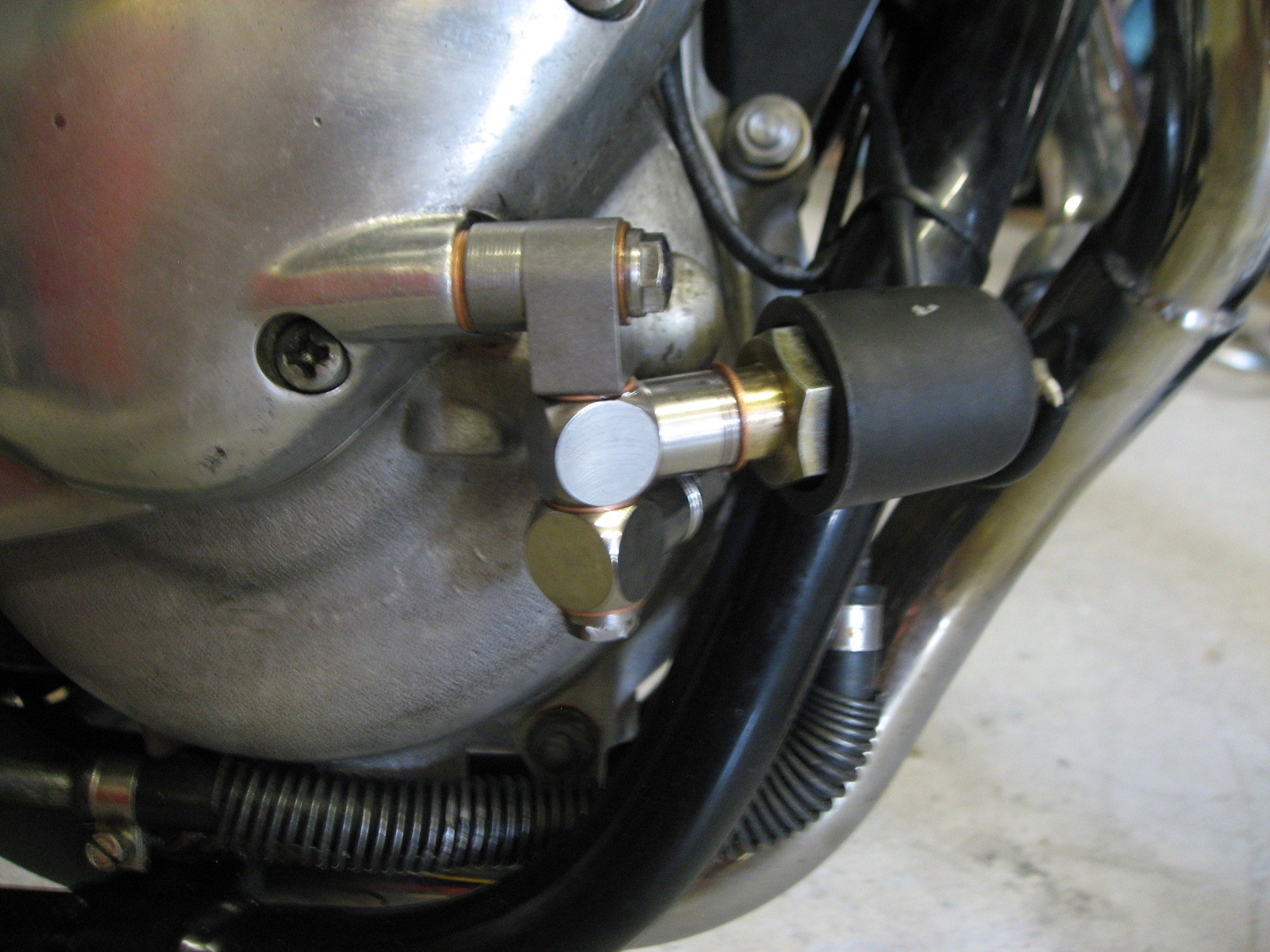

As an example : To fit a Morgo Pressure Gauge to a Triumph T140 you would need a NPS bolt 1 NPS adaptor and 1 BSP adaptor.

Early Triumphs would need a BSCY bolt 1 BSCY adaptor and 1 BSP adaptor.

Technical Information

Dimensions 0.16 cm
Supplied

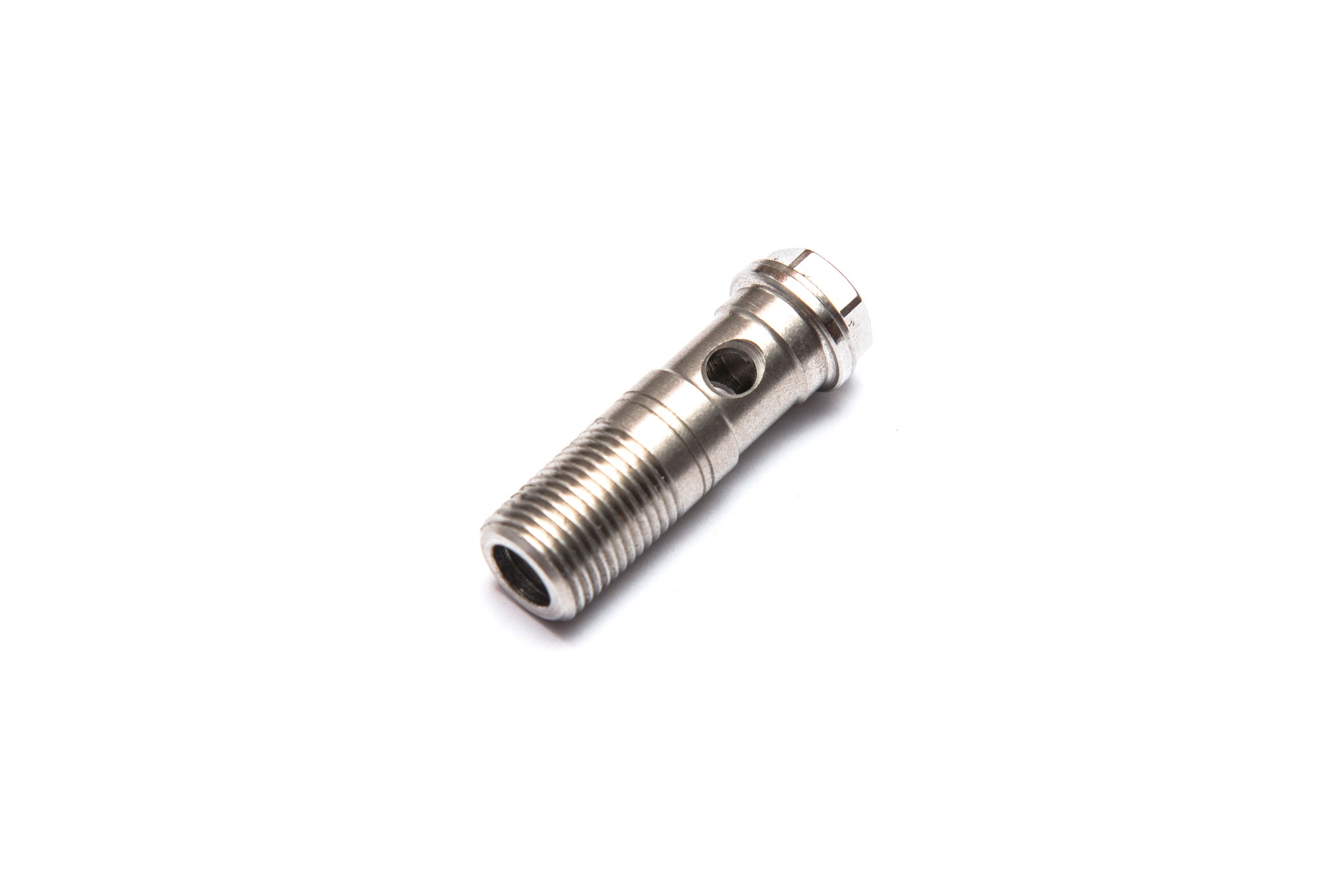

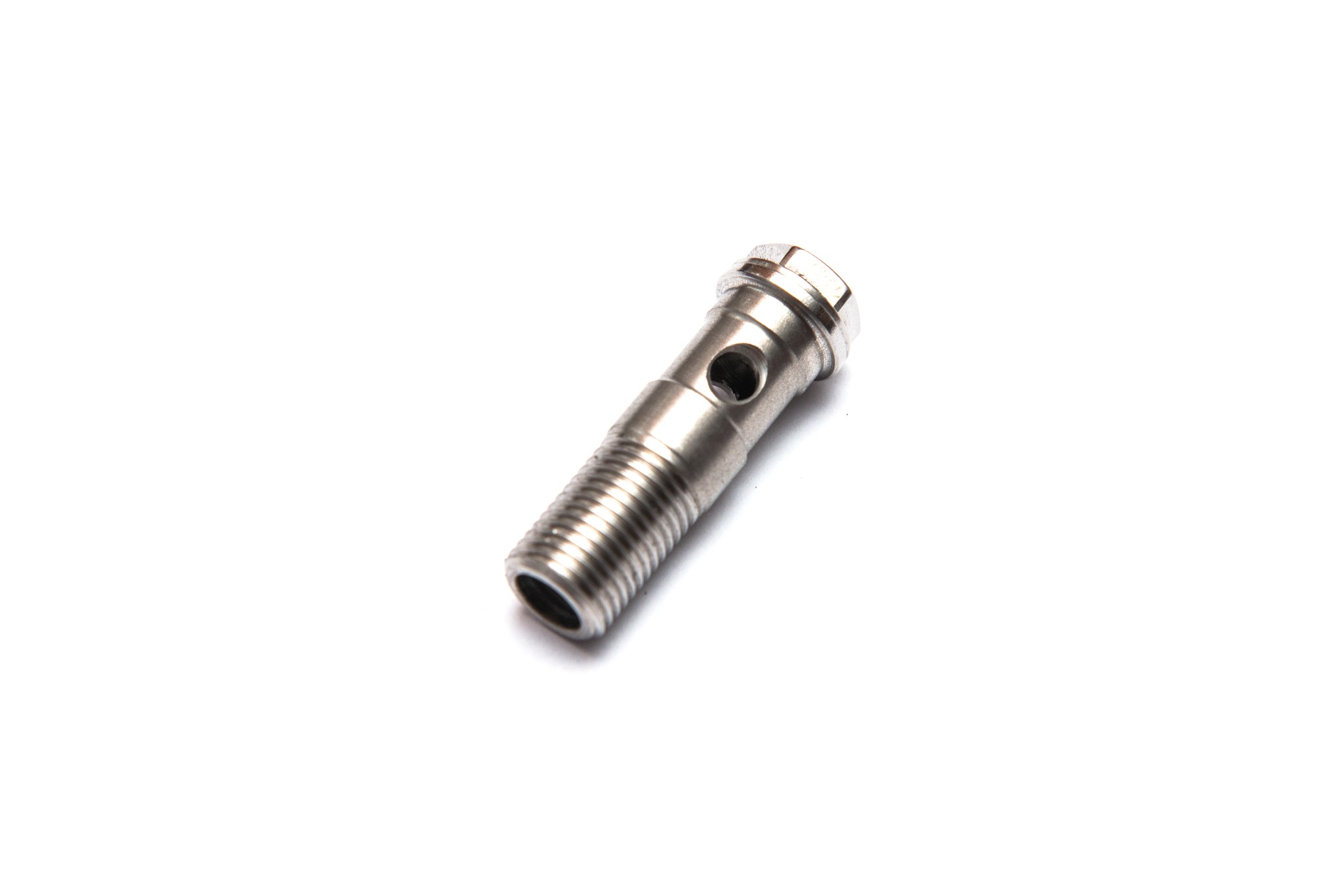

1 Mounting block 1 Short bolt 1 Long bolt 5 Copper washers 2 Adaptors

Fitting

NPS, BSP, BSCY, Blank

Fitting 2

NPS, BSP, BSCY, Blank

Bolt Type

NPS, BSCY
